DeltaOHM HD2060 TİTREŞİM ÖLÇER KALİBRATÖRÜ
The calibrator HD2060 generates mechanical vibration amplitude controlled with precision and frequency stabilized by a quartz.
Coupling a transducer to the vibrating base of the calibrator it is possible to check its sensitivity to acceleration, velocity or displacement. The presence of a rechargeable internal battery, the weight and the small dimensions as well as the low sensitivity to environmental parameters make it easy to use the calibrator in the field.
Applications:
- In-the-field calibration of acceleration, velocity and displacement transducers.
- Calibration of acceleration sensors used for the measurement of vibrations transmitted to men in the workplace, according to the standard ISO 8041:2005.
- Calibration of acceleration sensors used to evaluate buildings vibration.

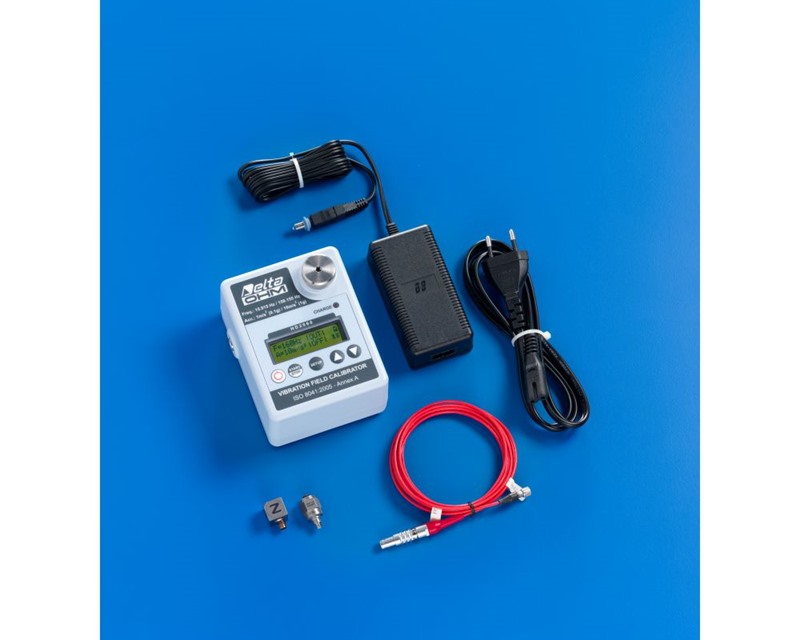

The calibrator is equipped with screws and accessories for mounting the transducers, with external power supply for charging the battery and with a calibration report.
| Maximum load of the vibrating base | Traction force: 10 N Pressure: 30 N Transverse: 2 N |
| Mass of the transducer | Maximum 250 g at 15.915 Hz Maximum 30 g at 159,155 Hz |
| Emission frequency tolerance | ± 0,1% |
| Emission amplitude tolerance | ± 3% |
| Distortion | Less than 3% at 15,915 Hz Less than 0,5% at 159,155 Hz |
| Duration of individual emission | Settable from 120 sec to 10 min . Automatic turn OFF |
| Transverse acceleration | Less than 10% at 15,915 Hz Less than 20% at 159,155 Hz |
| Working temperature/ RH | 0…+40 °C / 0…85 % RH not condensing |
| Stabilization time | Less than 30 s |
| Display | Backlit with indication of: Frequency generated Acceleration generated Stabilization of the vibration Remaining battery charge Calibration deadline |
| Power supply | Rechargeable NiMH battery pack 1.2V x 4, capacity 1600 mA/h (BAT-40) Stabilized power supply voltage 100-240 Vac / 12 Vdc 1 A (SWD10) |
| Authonomy with full charged battery | 2 hours of continuous use at 15,915 Hz 7 hours of continuous use at 159,155 Hz |
| Battery charging time | 4 hours at 12 Vdc 1A |
